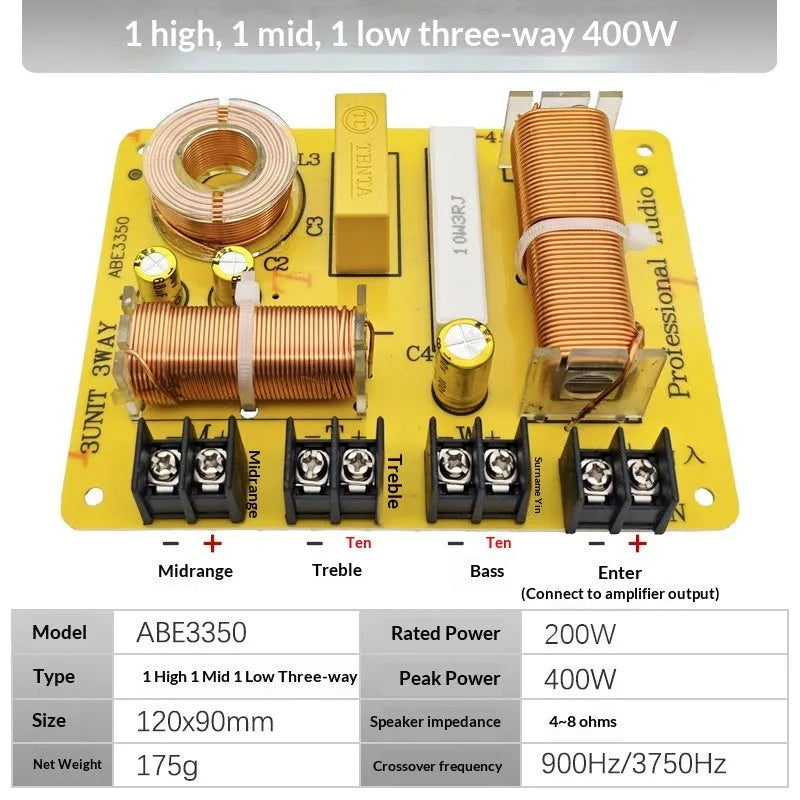

Three-Way Audio Crossover 400W Speaker Divider with 900Hz/3750Hz Frequency Split

This three-way audio crossover is designed to split an audio signal into three distinct frequency bands: high, mid, and low. By directing each band to a dedicated speaker driver, the crossover reduces distortion and improves overall sound clarity, making it a valuable component for custom speaker systems, home audio projects, or PA installations. With a power handling capacity of 400W, it supports moderate to high-output setups without compromising performance. The crossover's through-hole mounting type simplifies installation, as it does not require soldering, making it accessible for both hobbyists and professionals. Frequency crossover points are set at 900Hz and 3750Hz, ensuring smooth transitions between your tweeter, midrange, and woofer drivers. This solderless design reduces assembly time and potential connection errors, giving you a reliable foundation for your speaker build.

Features and Construction

This crossover is engineered with a practical through-hole mounting system and clearly defined frequency split points. Its three-way configuration is ideal for systems using separate tweeter, midrange, and woofer drivers, providing clean signal routing without additional components.

Material and Build

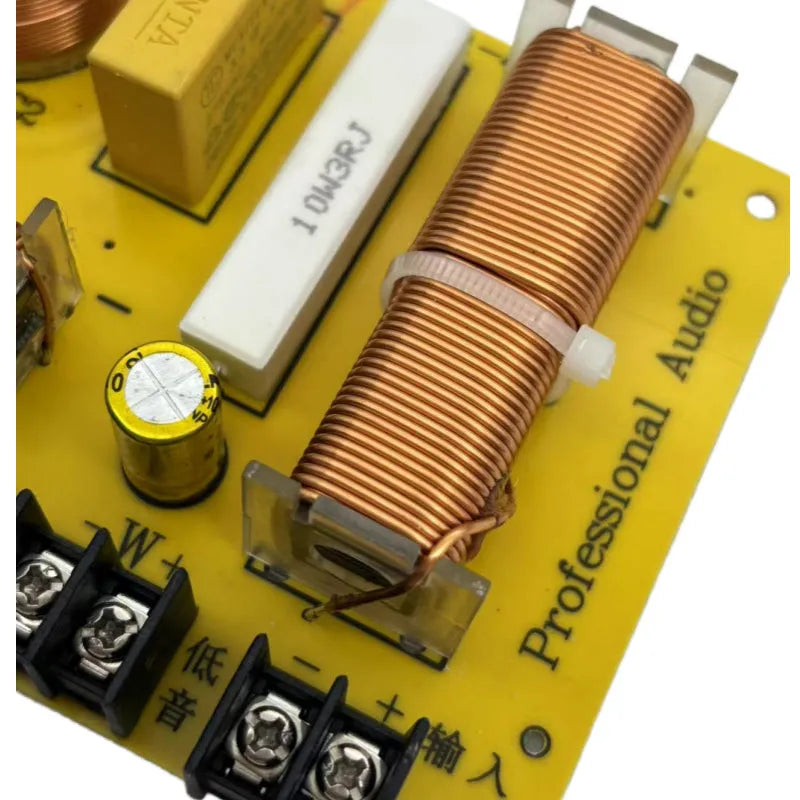

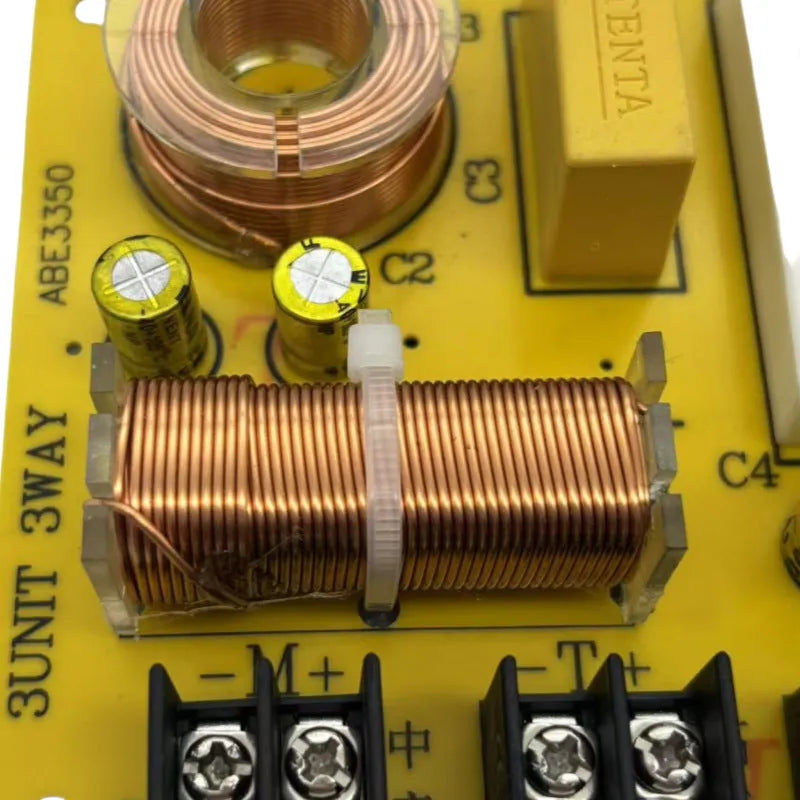

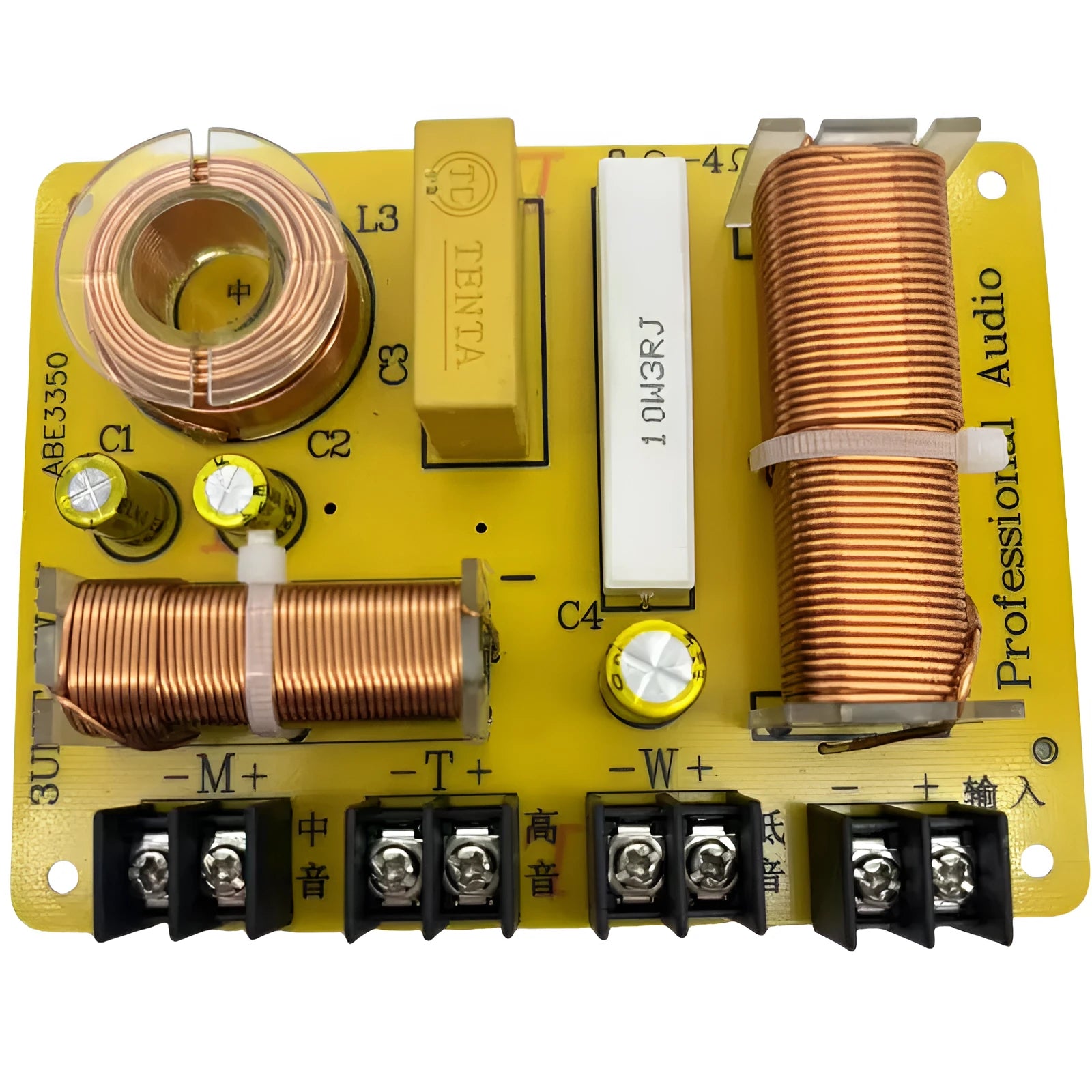

The crossover consists of standard PCB-mounted electronic components. While the specific materials are not detailed in the source text, the through-hole design ensures secure connections and straightforward integration into speaker cabinets. Solderless terminals reduce the need for specialised tools, making it a convenient choice for DIY enthusiasts.

Size and Practical Fit

Size dimensions are not provided in the source text, so we recommend measuring your enclosure space before purchase. The crossover's compact PCB form factor should suit most standard speaker cabinet designs, but always check physical fit during the planning stage.

Uses and Placement

This three-way crossover is suited to a range of audio applications, from home stereo systems to small PA setups. Its 400W rating and solderless design make it flexible for various build scenarios.

Event or Professional Use

For small venues, rehearsal spaces, or portable PA systems, this crossover helps ensure each driver receives the correct frequency range, reducing driver strain and improving speech or music clarity. The through-hole mounting allows quick replacement or adjustment during installation.

Everyday Home Use

Home audio enthusiasts building or upgrading bookshelf speakers or floor-standing cabinets can use this crossover to achieve a balanced soundstage. The solderless feature makes it easy to experiment with different driver combinations without committing to permanent connections.

Benefits and Buying Value

Choosing a solderless three-way crossover simplifies the speaker-building process and reduces the risk of installation errors. With a clear frequency split and adequate power handling, it offers practical value for both new builds and upgrades.

Reuse and Low Maintenance

Once installed, the crossover requires minimal maintenance. Its through-hole connections are secure and can be reused in future projects if drivers are swapped or upgraded. No specialist cleaning or recalibration is needed under normal use.

Why Choose This Product

This crossover provides a straightforward solution for three-way speaker systems, combining 400W power handling, pre-set frequency points, and solderless installation. It saves time and effort compared to wiring individual components, making it a sensible choice for anyone building or repairing multi-driver speaker cabinets.
