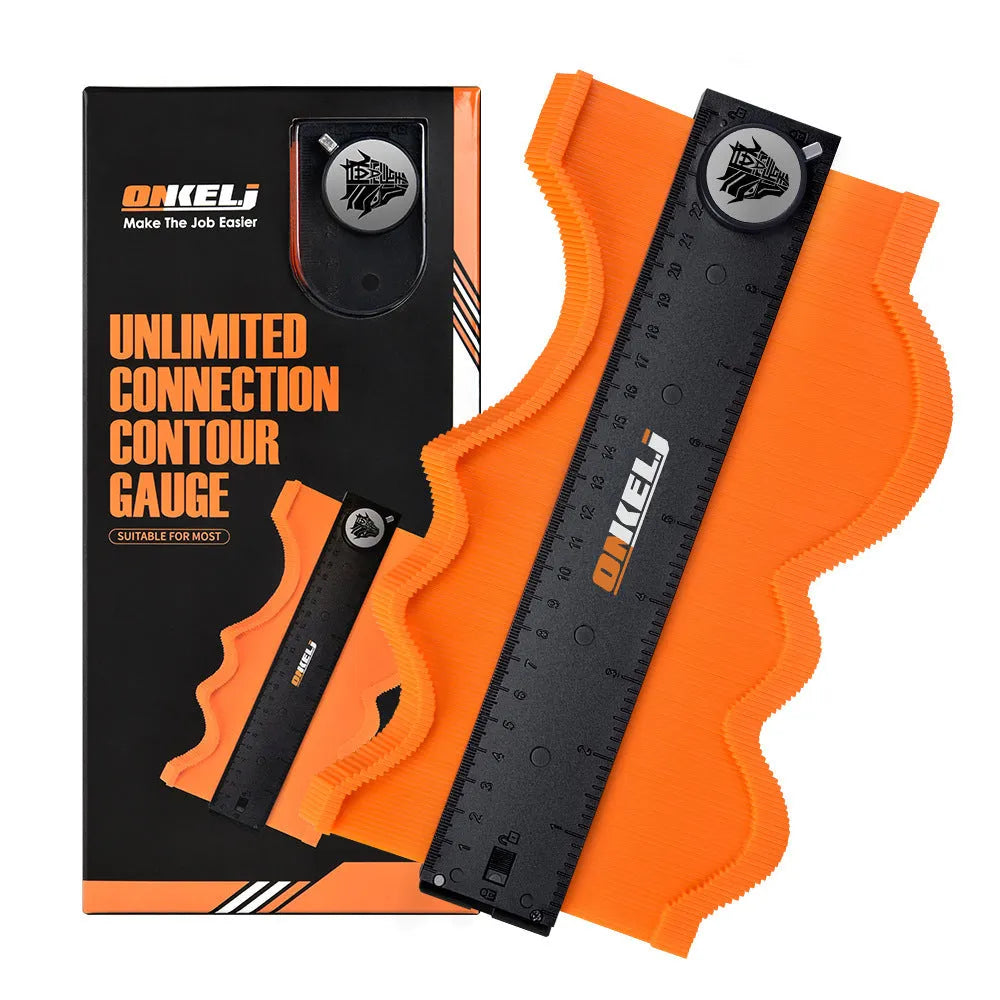

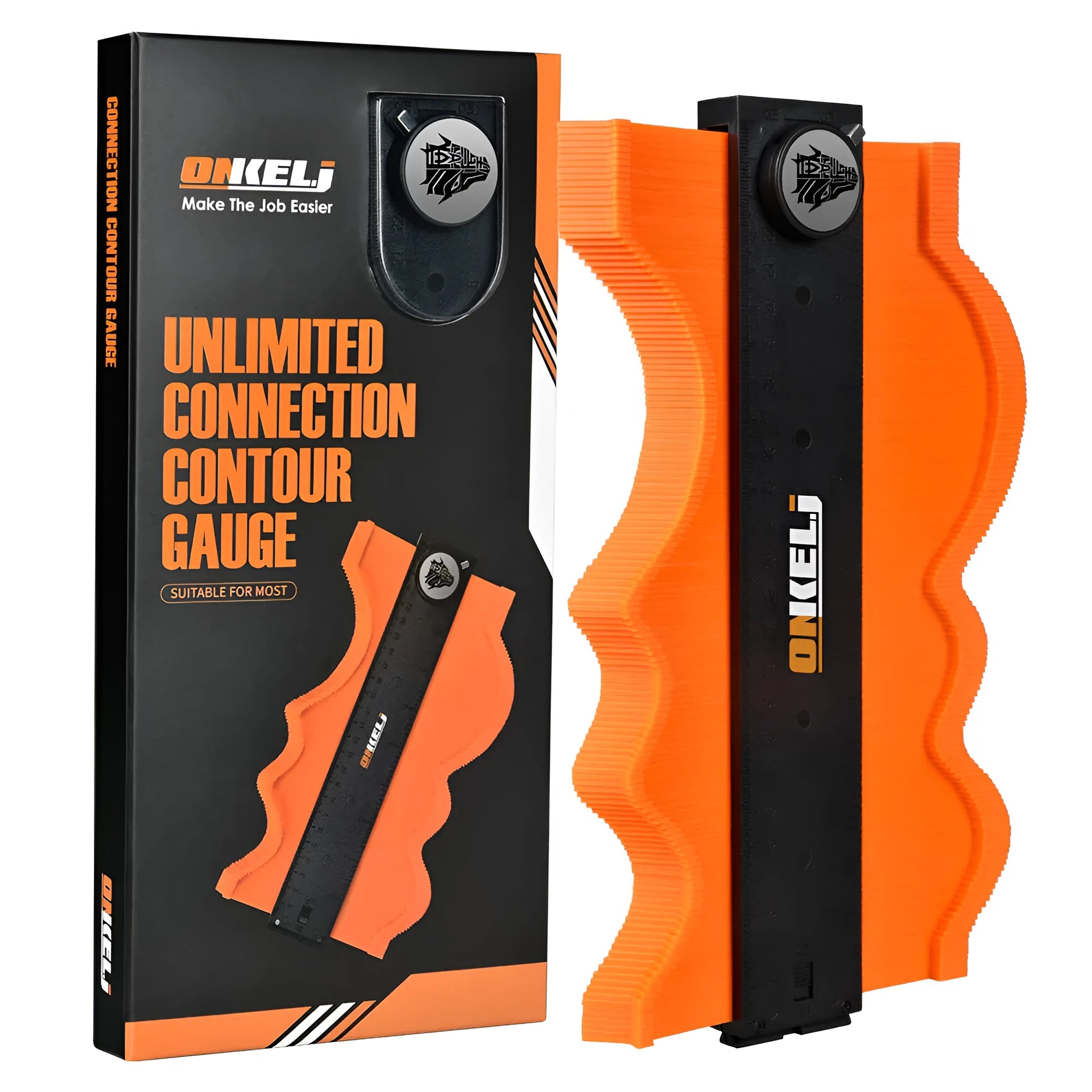

10-Inch Contour Gauge with Lock for Unlimited Stitching and Accurate Profiling

Transferring intricate shapes for skirting boards, tiles, or custom woodworking projects requires precise measurement tools. This 10-inch contour gauge, constructed from stainless steel and ABS plastic, is designed to copy irregular profiles with its unlimited stitching capability. An integrated lock mechanism secures the pins once the shape is captured, allowing for accurate marking and cutting on your workpiece. With dimensions of 265mm x 130mm x 27mm and a stated accuracy of 1mm, it serves as a practical solution for both DIY enthusiasts and professional tradespeople needing reliable template creation.

Features and Construction

This contour gauge combines specific materials and mechanical features to fulfil its profiling function effectively. Its construction focuses on practical durability and user operation for shape transfer tasks.

Material and Build

The gauge uses stainless steel for its array of contour pins, providing the necessary rigidity to hold a copied shape without flexing. The main body and frame are made from ABS plastic, which houses the pin mechanism and offers a lightweight yet sturdy handle. This material combination results in a tool that withstands regular use in workshop or site environments without excessive weight.

Size and Practical Fit

With overall dimensions of 265mm in length, 130mm in width, and a 27mm thickness, the gauge is designed for single-handed operation. The 10-inch working width of the pin array allows it to tackle a wide range of profile sizes. Its compact form factor makes it easy to store in a toolbox or carry to a job, while the size is sufficient for common domestic and commercial profiling tasks.

Uses and Placement

The primary application of this tool is to create accurate templates for cutting materials to fit against irregular surfaces. Its design supports use in various settings, from home improvement to professional installation work.

Event or Professional Use

For professional carpenters, kitchen fitters, or flooring installers, the gauge speeds up the process of fitting skirting boards, worktops, or laminate flooring around obstructions. The lock function is particularly valuable here, preventing the captured profile from shifting during transport to the cutting saw. The 1mm accuracy supports the precise tolerances often required in paid contract work.

Everyday Home Use

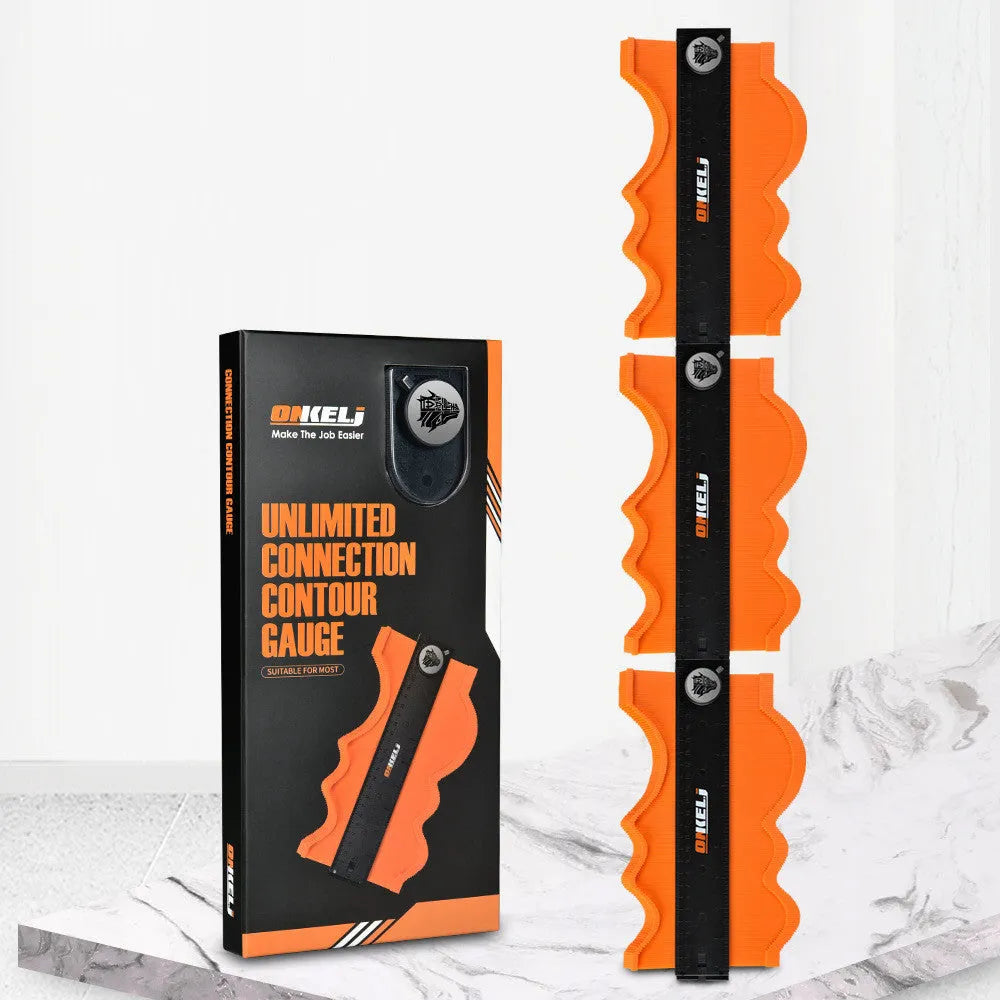

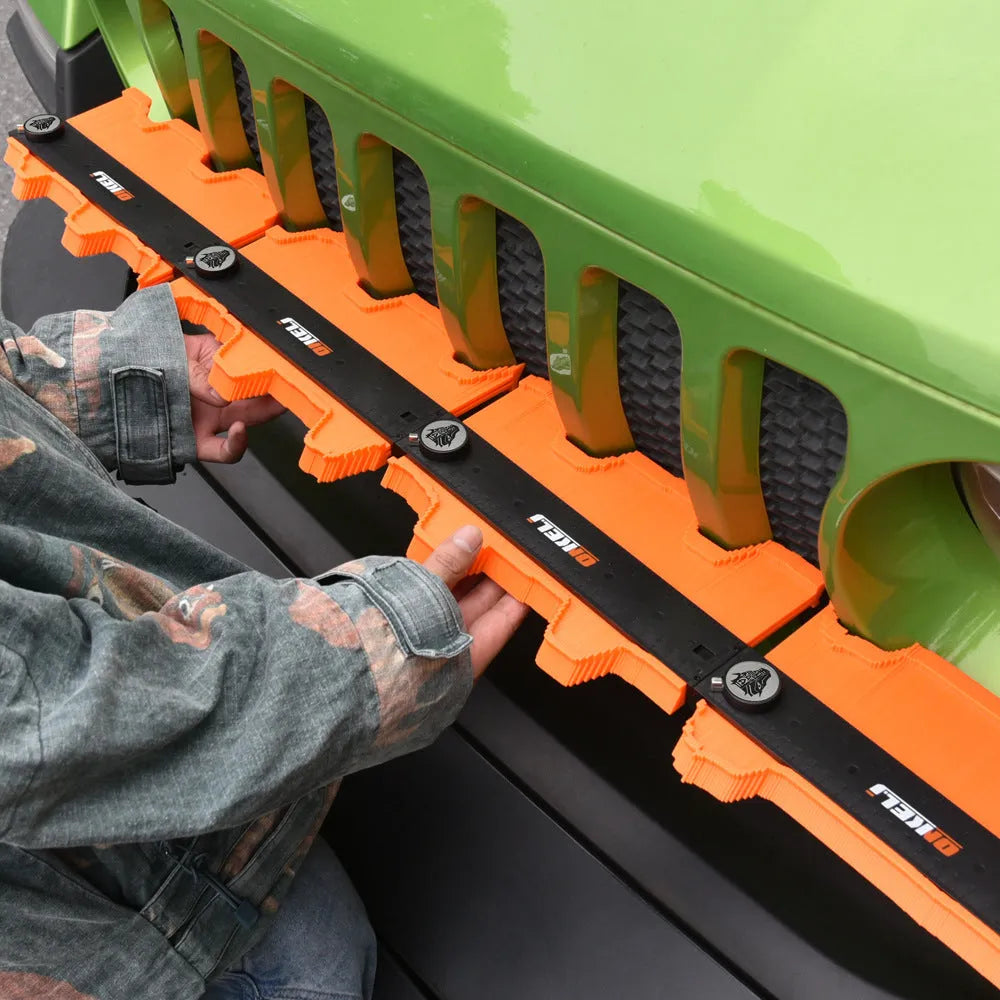

DIY users will find the tool helpful for projects like tiling around pipes, fitting panels, or crafting custom furniture joints. The unlimited stitching feature means it can be walked along a longer moulding to copy its entire profile sequentially. Its straightforward operation—press, lock, and trace—requires no specialist skill, making complex shape matching accessible for home workshops.

Benefits and Buying Value

The value of this contour gauge lies in its specific functionality, reuse potential, and the practical problems it addresses directly. It is a single-purpose tool that performs its task reliably based on its stated specifications.

Reuse and Low Maintenance

As a mechanical tool with no electrical parts, it can be used repeatedly for years across many projects. Maintenance involves simply keeping the pins and frame clean from built-up dust or material residue. The stainless steel and ABS construction resists corrosion and impact under normal workshop conditions, contributing to its longevity without unsupported claims about lifespan.

Why Choose This Product

This gauge is chosen for its concrete features: the 10-inch width with unlimited stitching handles longer profiles, the lock ensures measurement integrity, and the 1mm accuracy supports precise work. Compared to generic measuring methods, it provides a dedicated, repeatable solution for copying shapes, reducing guesswork and material waste. Its value is in its specific, source-supported design rather than generic premium claims.
