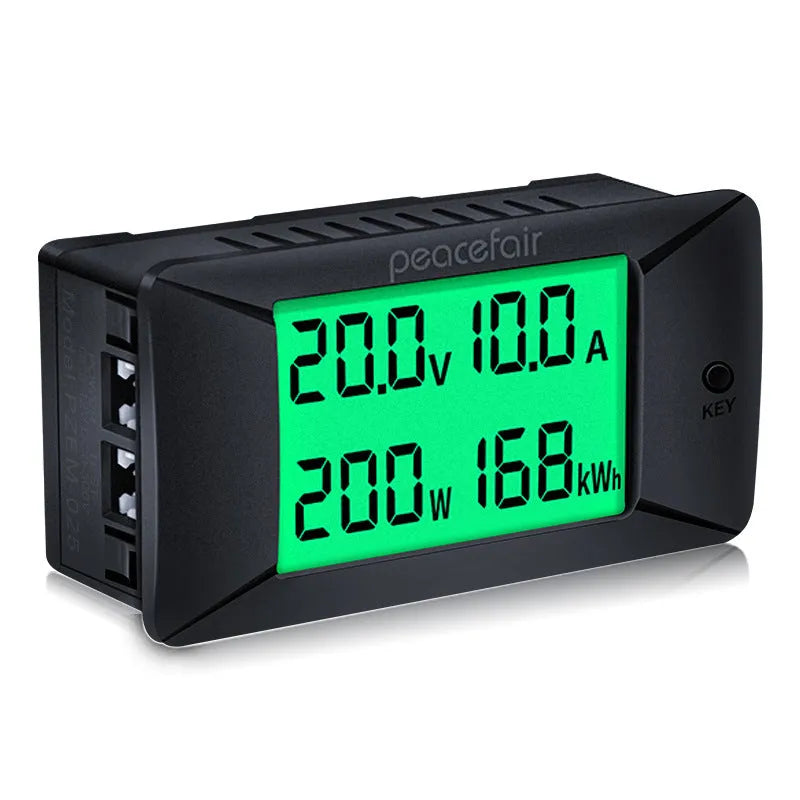

DC Digital Display Voltmeter and Ammeter for Electrical Voltage and Current Monitoring

This digital display instrument provides a straightforward method for monitoring DC electrical systems. Designed to measure both voltage and current, it displays readings from 0 to 300 volts and is available in ampere ranges up to 300 amps. Its clear digital readout removes guesswork from electrical testing, making it suitable for applications where verifying power consumption or circuit performance is needed. The compact design allows it to be integrated into control panels, DIY projects, or used as a portable testing device under normal ambient temperature conditions.

Features and Construction

The meter's functionality is centred on providing accurate, visible measurements for DC electrical systems. It combines voltage and amperage monitoring into a single, compact unit, eliminating the need for separate instruments.

Material and Build

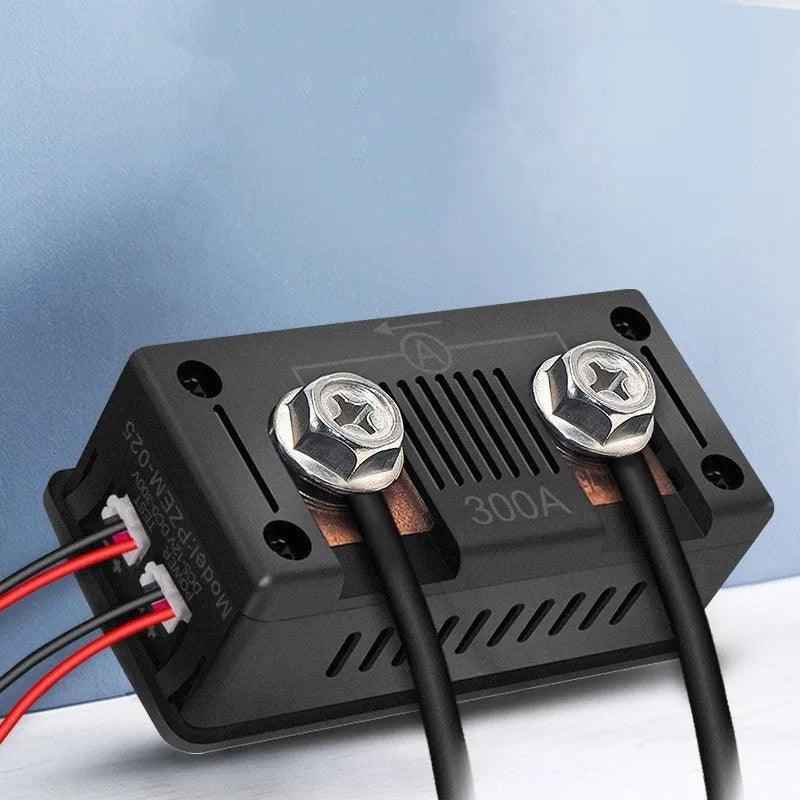

The unit is housed within a compact casing measuring 85.3mm by 44mm by 40.2mm. This housing likely consists of plastic or composite materials designed to protect the internal digital circuitry. External connections are made via the supplied wiring, and certain packages include a metal wrench for secure installation. The construction prioritises functionality for displaying electrical measurements reliably under standard room temperatures.

Size and Practical Fit

With boundary dimensions of 85.3mm in width, 44mm in height, and 40.2mm in depth, the device is designed for space-efficient mounting. This size makes it suitable for installation in control panels, project enclosures, or on equipment where panel space is limited. The compact form does not compromise its core function of providing a clear digital display for the measured values.

Uses and Placement

This multi-function meter is intended for scenarios where monitoring DC power is necessary. Its application spans from basic diagnostic work to ongoing system monitoring.

Event or Professional Use

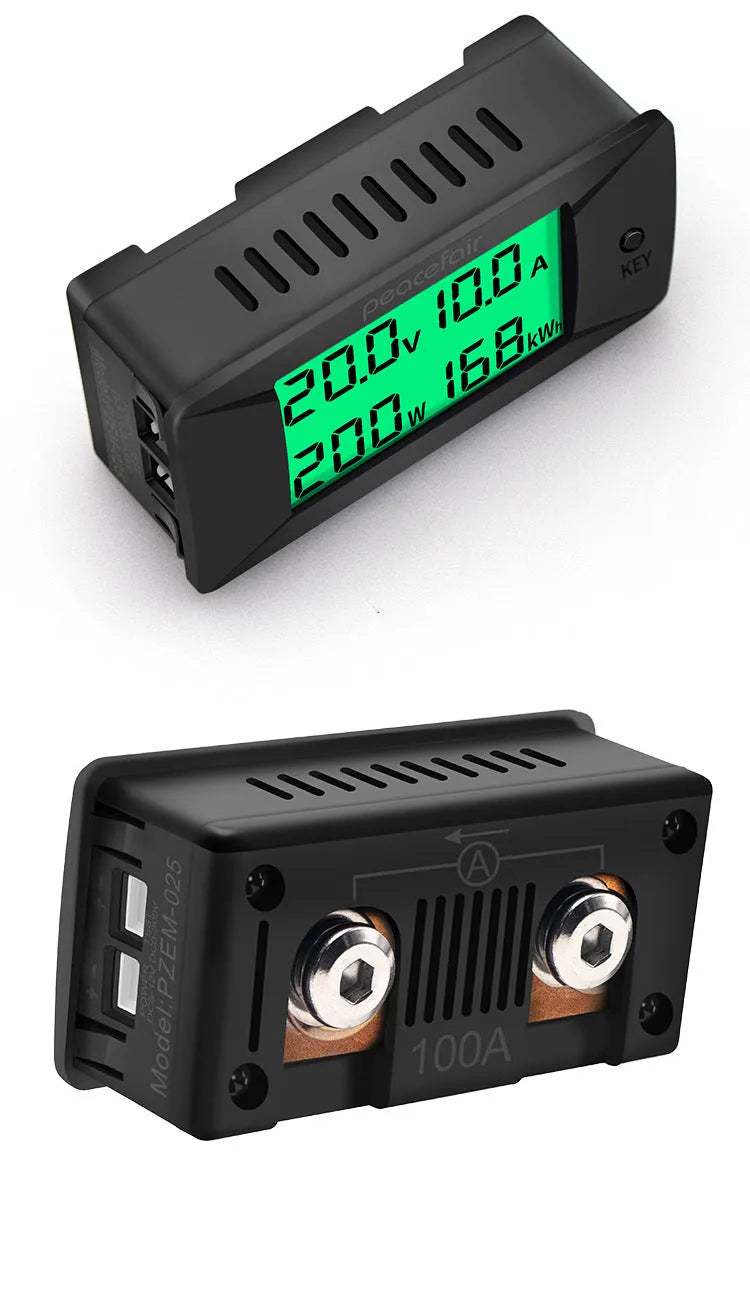

For professional or workshop use, the meter serves as a diagnostic tool. Electricians or technicians can use it to verify circuit voltage, check for correct current draw on motors or loads, or monitor the output of DC power supplies and batteries. The availability of different ampere ranges (50A, 100A, 200A, 300A) allows the selection of a model appropriate for the expected current in the system under test, from low-power electronics to higher-current automotive or renewable energy applications.

Everyday Home Use

In DIY or hobbyist contexts, this meter can be integrated into home projects. It could be used to monitor the voltage of a 12V battery system, check the output of a solar panel controller, or measure the current consumption of a custom-built device. The digital display provides an easy-to-read interface compared to analogue meters, making it accessible for users who need to confirm electrical parameters without interpreting needle positions or complex scales.

Benefits and Buying Value

The value of this instrument lies in its dual-function capability and the clarity of its digital readout within a defined measurement range.

Reuse and Low Maintenance

As a solid-state digital instrument, it requires minimal maintenance beyond careful handling and connection within its specified voltage and current limits. Its primary component is the host unit, which, when connected with the appropriate wiring, can be used repeatedly for different testing scenarios or permanently installed for continuous monitoring. There are no consumable parts, supporting its reuse over time.

Why Choose This Product

This product offers a practical solution for anyone needing to measure DC voltage and current with a clear digital display. The key decision point is selecting the correct ampere range model—50A, 100A, 200A, or 300A—to match the maximum current you intend to measure. The inclusion of wiring (and a wrench in some packages) provides the essential components for connection, making it a ready-to-use instrument for its stated purpose of electrical measurement and monitoring.
