DIY Power Bank and Charger for Custom 18650 Battery Capacity with Dual Input and Output

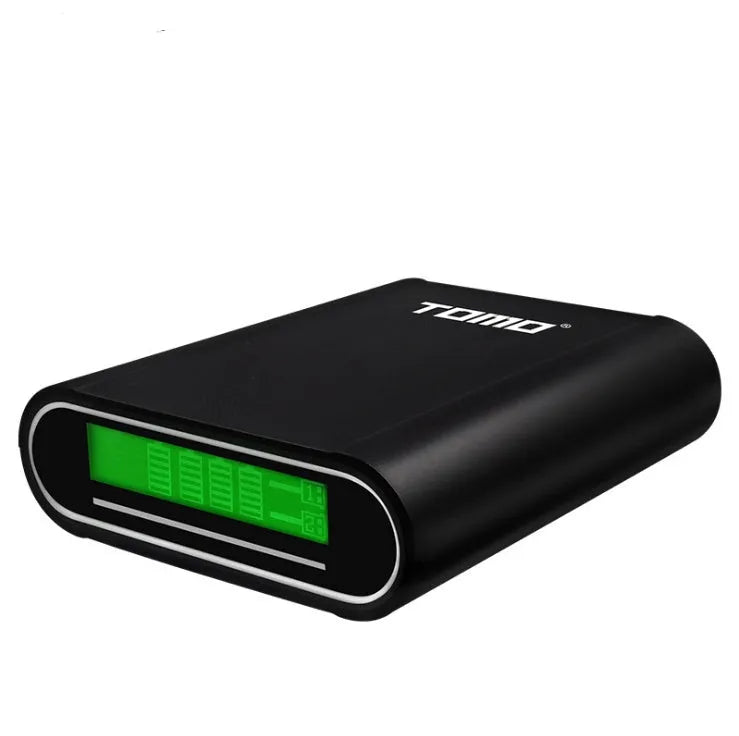

This mobile power box addresses the common frustration with pre-made power banks of uncertain quality and inflated capacity claims. It is a dual-purpose unit that functions both as a portable external battery pack for your electronic devices and as a dedicated charger for standard 18650 lithium-ion cells. The core advantage is customisation: you supply the batteries, allowing you to build a power bank with a known, truthful capacity based on the quality of cells you select, effectively rejecting false capacity and inferior batteries. The compact design, measuring 100 x 84 x 26 mm, houses a sophisticated independent circuit system, an LCD display for each battery, and dual charging inputs for flexible power sourcing.

Features and Construction

The unit's design prioritises flexibility, safety, and user-defined performance, moving away from fixed, often misleading specifications of sealed power banks.

Material and Build

The source text does not specify the casing or internal component materials, so no claims about build quality or durability can be made. The construction centres on its electronic functionality: an independent circuit system that allows the installed 18650 batteries to charge and discharge simultaneously without these processes interfering with each other. This is supported by a reverse polarity protection chip that automatically identifies and cuts power to any battery circuit connected incorrectly, displaying an empty battery level on that slot's LCD without disrupting the normal operation of the other circuits.

Size and Practical Fit

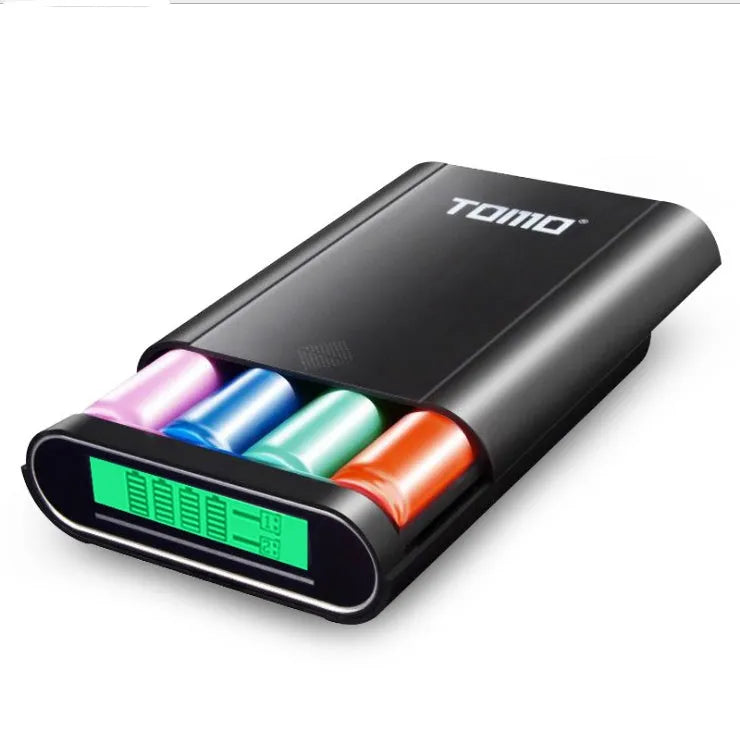

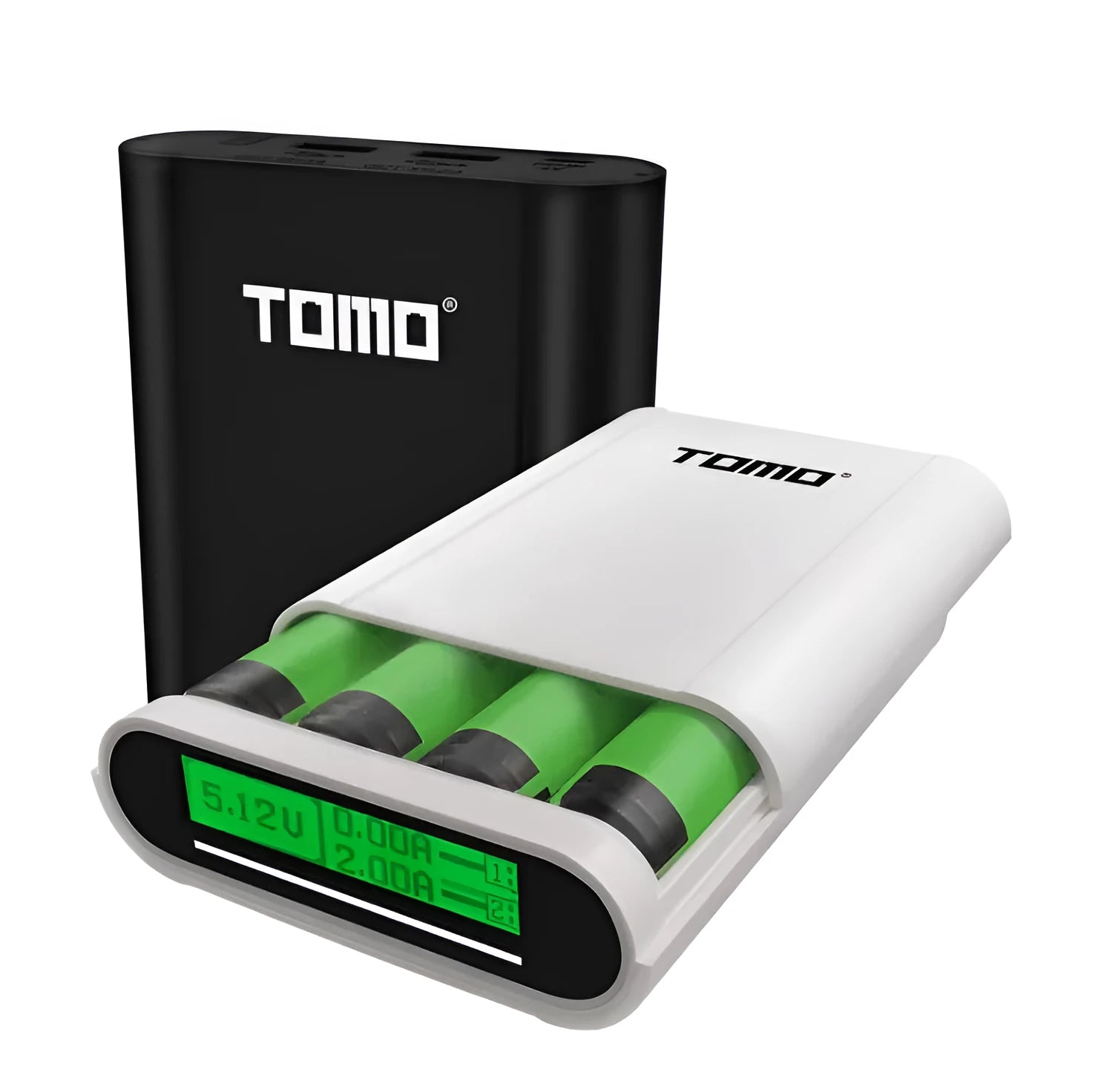

The power box is a compact unit sized at 100 mm in length, 84 mm in width, and 26 mm in depth. This portable form factor is designed to accommodate up to four 18650 batteries, which you provide, to create your custom power bank. The physical dimensions make it a practical accessory for travel, work, or home use, offering substantial power capacity without the bulk of many pre-assembled units. It is available in two colour options, black or white, to suit personal preference.

Uses and Placement

Its dual-role functionality makes it suitable for various scenarios where reliable, user-verified portable power is needed, or where multiple 18650 batteries require charging.

Event or Professional Use

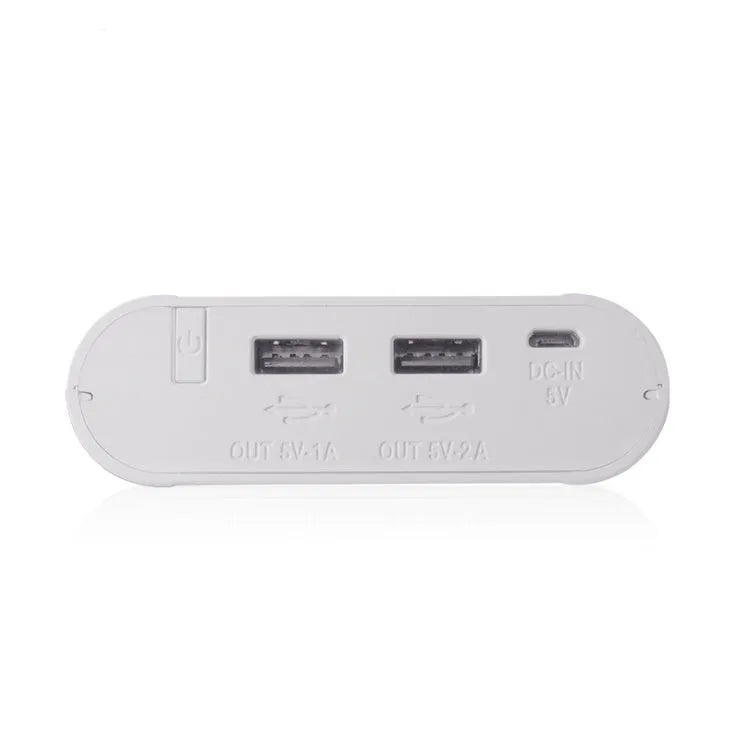

For photographers, event staff, or technicians in the field, this product provides a reliable way to maintain device power. By using high-quality 18650 batteries you trust, you can create a power bank with a known, honest capacity to run lights, comms equipment, or cameras. The dual-output feature allows two devices to be charged at once from the same unit, and the ability to charge the internal batteries while simultaneously powering a device (thanks to the independent circuits) ensures minimal downtime during extended use.

Everyday Home Use

At home, it serves as a centralised charging hub and power reserve. It can be used to charge 18650 batteries for flashlights, vapes, or other household devices that use this cell type. Once batteries are installed, it becomes a convenient power bank for smartphones, tablets, Bluetooth speakers, or e-readers. The clear LCD display for each slot lets you monitor the charge level of individual batteries, which is useful for battery maintenance and ensuring you never start a trip with a partially depleted cell.

Benefits and Buying Value

The value proposition is rooted in transparency, reuse, and avoiding the waste associated with failed or dishonest power banks.

Reuse and Low Maintenance

This product leverages the reuse of standard 18650 batteries. Instead of discarding an entire power bank when its internal battery degrades, you simply replace the individual 18650 cells, which are widely available. This extends the functional life of the unit itself significantly. Maintenance is straightforward: keeping the unit clean and ensuring the correct polarity when inserting batteries, with the protection chip providing a safety net for any mistakes.

Why Choose This Product

You choose this power box if you want control over the core component of any power bank: the battery. It allows you to bypass marketing claims and build a unit with a capacity you can verify, using cells from reputable sources. The combination of being both a charger and a power bank reduces the number of gadgets you need to own and carry. The technical features—independent circuits, dual input/output, and polarity protection—add practical, safety-focused utility that supports its role as a versatile and user-defined power solution.
