MC4 Solar Panel Extension Cable in 4mm² and 6mm² Sizes with Low-Smoke Halogen-Free Sheath
When installing or expanding a solar panel system, having the right length of connecting cable is crucial for a tidy and efficient layout. This MC4 photovoltaic extension cable is designed to bridge gaps between panels or run from an array to a combiner box or inverter. It eliminates the need for on-site splicing, providing a ready-made, reliable link with factory-fitted MC4 connectors. Available in five standard lengths from a short 1-metre jump to a 10-metre run, it offers flexibility for various roof sizes and panel configurations. The cable is specified for use in new energy applications, making it a dedicated component for your solar power setup.
Features and Construction
This cable is built with the specific demands of a solar installation in mind, focusing on durability, safety, and electrical performance suited to photovoltaic systems.
Material and Build
The core of the cable is a tinned copper wire. The tinning process coats the copper conductor with a thin layer of tin, which helps to prevent oxidation and corrosion over time—a valuable feature for cables exposed to the elements on a rooftop. Both the insulation and the outer sheath are made from a low-smoke halogen-free (LSHF) material. In the unlikely event of a fire, this type of material is designed to produce minimal smoke and no halogen gases, which can be corrosive and toxic, offering a safety advantage for systems installed in or near buildings.
Size and Practical Fit
The cable is offered in two nominal conductor cross-sections: 4 square millimetres (4mm²) and 6 square millimetres (6mm²). This allows you to select the appropriate size based on the current (amperage) your solar circuit will carry, helping to minimise voltage drop over distance. The maximum outer diameter of the cable ranges from 2.5mm to 6mm, depending on the specific model and cross-section. It is rated for medium and low voltage power applications up to 35 kilovolts (kV), which covers the standard operating voltages of residential and commercial solar arrays.
Uses and Placement
This product serves a clear purpose within a photovoltaic system, providing a safe and specified connection path for DC power generated by solar panels.
Event or Professional Use

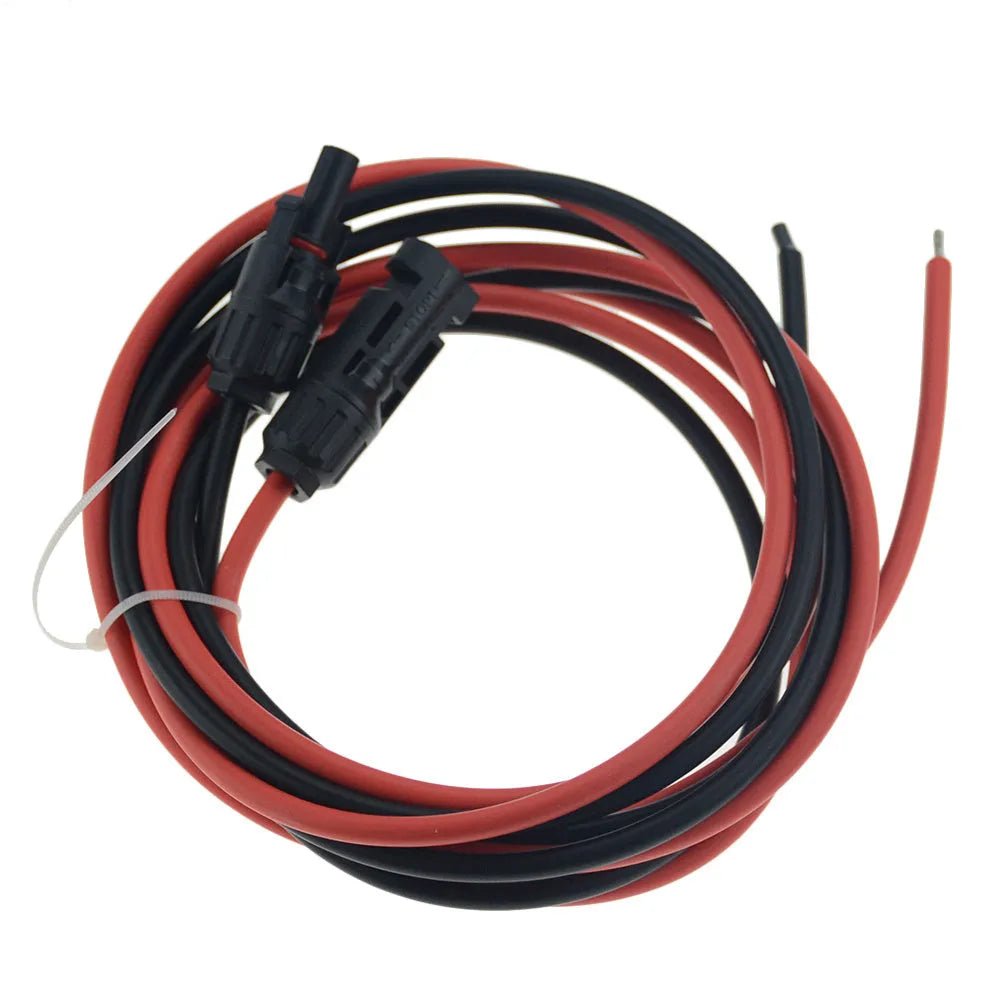

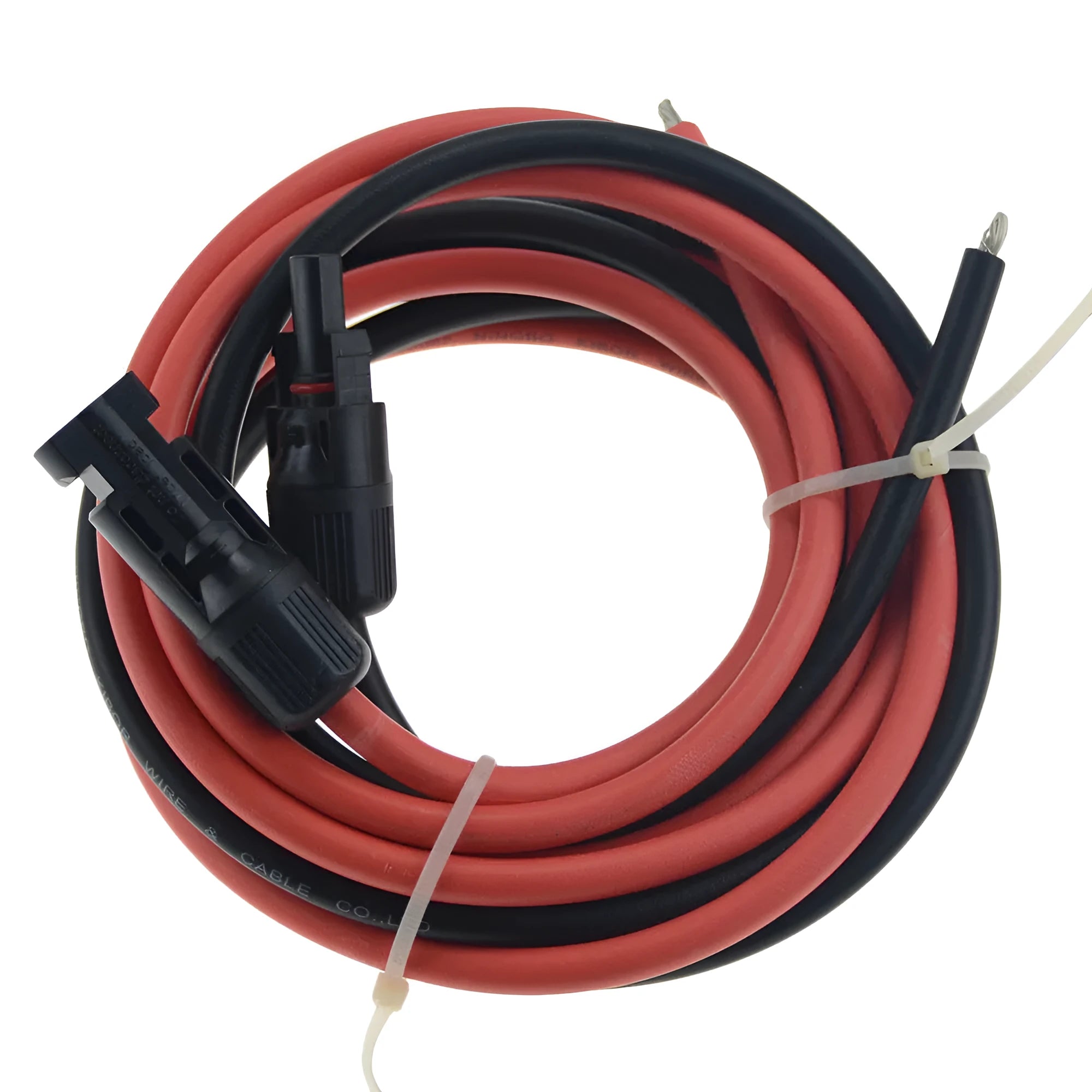

For professional installers, this cable simplifies inventory and installation. Carrying a selection of the five standard lengths (1m, 2m, 3m, 5m, and 10m) means they can quickly address most on-site layout challenges without cutting and crimping cables. The availability in black or red sheathing also aids in basic DC circuit identification during the initial wiring phase, such as distinguishing between positive and negative strings, especially before final labelling is applied.
Everyday Home Use
For the DIY solar enthusiast or homeowner managing an existing system, this extension cable can be a practical solution for minor system modifications or repairs. If you need to relocate a single panel slightly, add a new monitoring device, or replace a damaged cable run, having a pre-made extension with the correct MC4 connectors ensures a weatherproof and secure connection is maintained without specialised crimping tools.
Benefits and Buying Value
The value of this cable lies in its role as a reliable, off-the-shelf component that adheres to relevant safety standards for its intended environment.
Reuse and Low Maintenance
The tinned copper core and robust LSHF sheathing contribute to the cable's potential for long-term service in an outdoor environment. By choosing the correct cross-section for your application, you ensure efficient power transfer and reduce the risk of overheating. As a sealed, factory-assembled unit, it requires no maintenance other than periodic visual checks as part of your overall solar system inspection.
Why Choose This Product
This MC4 extension cable provides a straightforward answer to a common need in solar installations: achieving the necessary reach between components. Its specification for photovoltaic use, combined with safety-focused LSHF materials and the practicality of multiple length and colour options, makes it a considered choice over generic cabling. It is a component that supports the reliable and safe operation of your new energy system.
